Basic parameters

System

SoC: Allwinner IK316

CPU: Quad-core ARM Cortex™-A53

GPU: Mali-G31

EMCP: DDR3 2GB+8GB DDR3 2GB+16GB

OS: Android Q(10.0)

Network

RJ45 Interface 10M/100M adaptive

Build in Wi-Fi 2.4GHz+5GHz+BT5.2

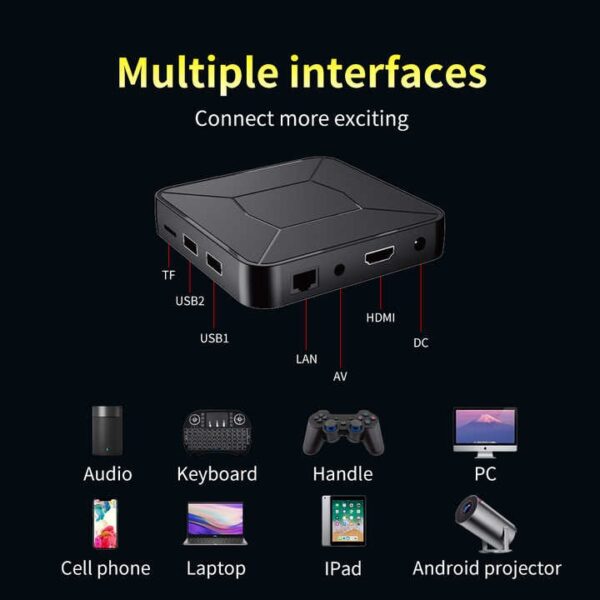

I/O

Video Output

HD2.0(4K60), AV

Network

RJ45, Buildin Wi-Fi antenna

Peripheral Interface

USB2.0x2

Power Interface

DC 5V 2A

Other Interface

IR receiver, LED indicato

Media

Video

Decoder:
• H.265 Main10@L5.1 decoder up to 4K@60fps
• VP9 Profile 2 decoder up to 4K@30fps
• AVS2 JiZhun 10bit decoder up to 4K@30fps
• H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps
• Multi-format 1080p@60fps video playback formats, including H.264 BP/MP/HP, H.263 BP, VP8, MPEG-1 MP/HL, MPEG-2 MP/HL, MPEG-4
SP/ASP@L5, AVS+/AVS JiZhun, WMV9/VC1, etc

Format:
MKV, TS, M2TS, MOV, MP4, RM, RMVB, AVI, MPG, MPEG, DAT, VOB, FLV etc.

Audio

Decoder:
MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis, Flac, ALAC, APE, AAC-LC/HEAAC/HE-AAC v2,
Real Audio, AC-3/DD+/AC-4, MPEG-H

Format:
MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, ALAC, MPEG, MP1, MP2, MPA etc.

Subtitle Format

SMI, SRT, SSA, ASS,SUB, SUB+IDX, ISO Navigation

Photo Format

HD JPEG/BMP/GIF/PNG/TIFF

Features

Network Streaming

HTML5, RTSP, HLS, Smooth streaming

Multi-screen interactive

Miracast, DLNA and Airplay

Local Media Playback

Video/Audio/Picture

TV APP

Sta*lke/Mini stra/X t ream code/M3 U(4K HDR10), Goo-gle Play(TV version), Goo-gle Voice Assistant, You Tube(4K), Net f lix(TV
Version), Dis ney+(TV Version up to 720P), H BO Max(TV Version) Android TV APP

External Storage

USB storage max to 2TB (FAT32/NTFS)

System Upgrading

Upgrading via USB disk or internet

Other parameters

Input Voltage

DC IN 5V/2A

Power Consumption

8W Max

Operation Temperature

0~40℃, Humidity<95%

Physical characteristics

40/PCS 57.5*38*23.8cm N.W:12KG G.W:13kG

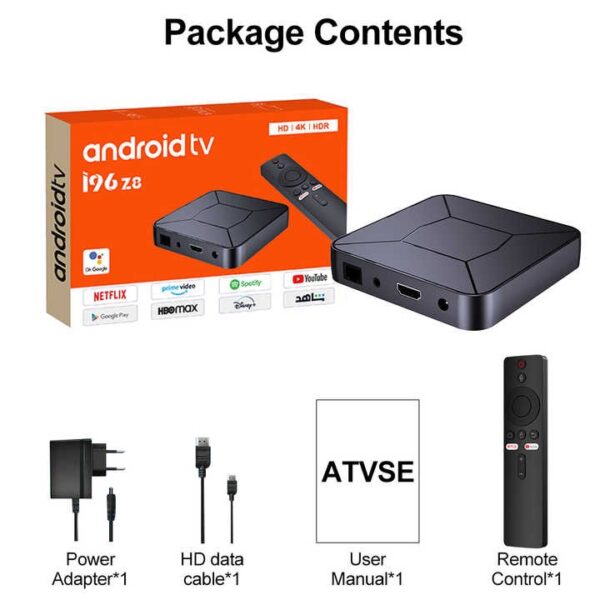

Proposed Accessory

Power adapter, User manual, HD cable, BT Voice RCU
