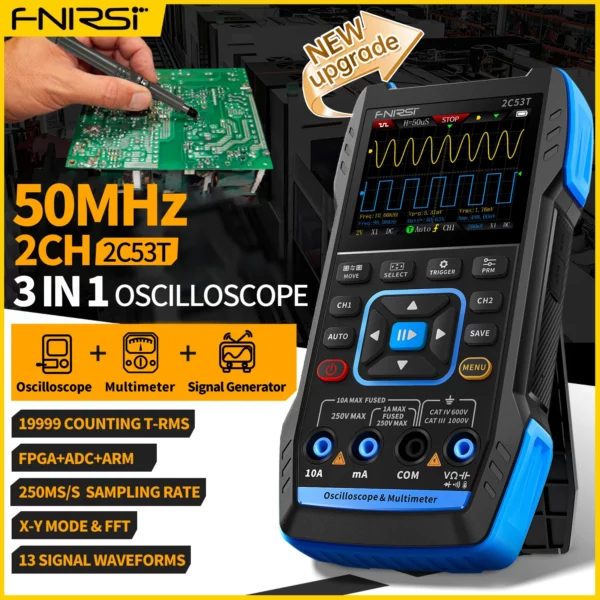

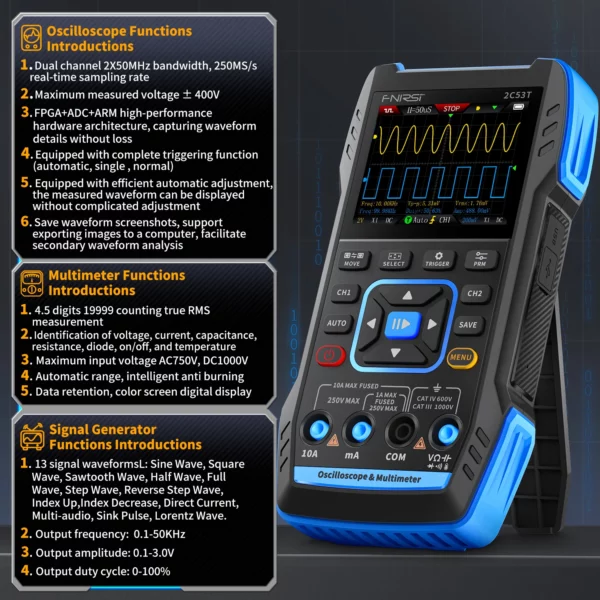

FNIRSI-2C23T is a fully functional, highly practical, three in one dual channel digital oscilloscope designed for the maintenance industry and development industry launched by FNIRSI.
This device is equipped with three main functions of oscilloscope, multimeter, and signal generator.

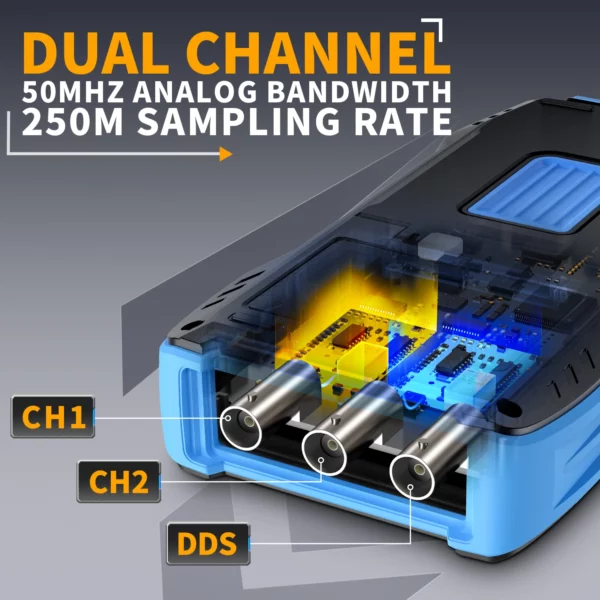

The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, with a sampling rate of 50MS/s, 10Mhz analog bandwidth, built-in high-voltage protection module, maximum support measurement of peak voltage of ± 400V;

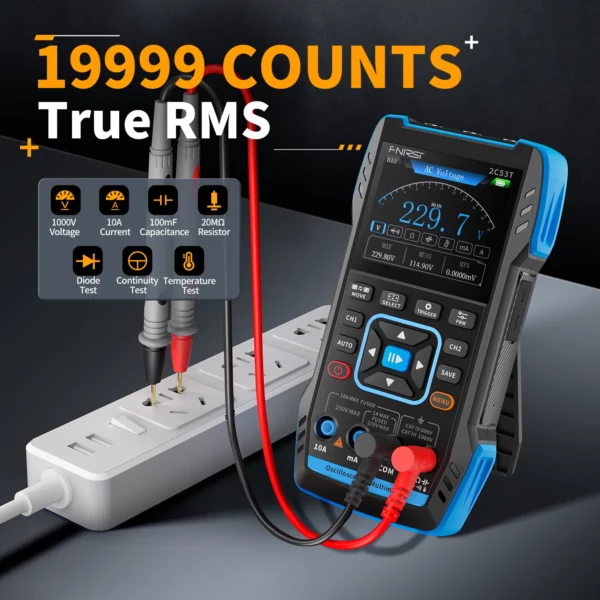

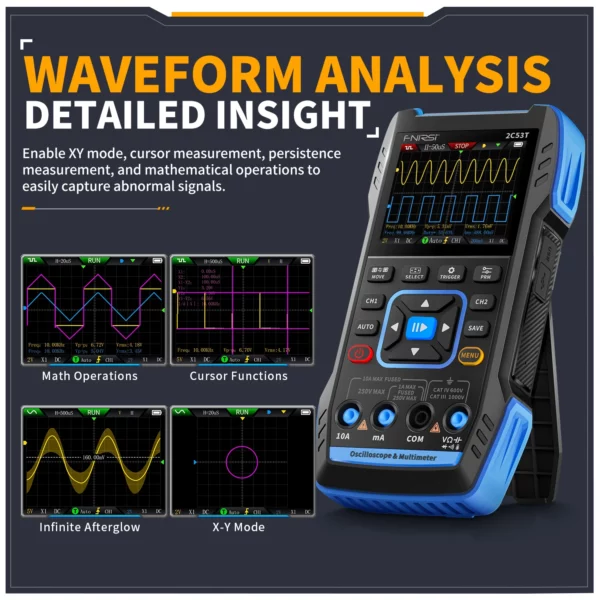

Support for saving and viewing waveform screenshots for analysis .The multimeter has a 4-digit 10000 point true effective value and supports AC/DC voltage and current measurement, as well as capacitance, resistance, diode, on/off and other measurement functions.
Whether used by professionals, factories, schools, enthusiasts, or families, it is an ideal multi-functional instrument.
Equipped with a built-in DDS function signal generator, it can output 7 types of function signals, with a maximum output of 2MHz for all signals and a step of 1Hz; The output frequency, amplitude, and duty cycle are adjustable.
Using a 2.8 inch 320 * 240 resolution high-definition LCD display screen with a built-in 3000mAh rechargeable lithium battery, the standby time can reach up to 6 H. Provide users with more and stronger practical functions in a compact size, while also having good portability.

Oscilloscope

Oscilloscope
Channel：Dual channel
Sample rate：50M
Analog bandwidth：10M(dual channel independent 10M)
Storage depth：32kb
Impedance：1MΩ
Time Base Range：50ns-10s
Vertical sensitivity：20mV/div-10V/div（X1）
Maximum measured voltage：±400V
Trigger mode：AUTO/Normal/Single
Trigger type：Rising edge, Falling edge
Display mode：YT/Scroll
Coupling method：AC/DC
Save waveform screenshot：Yes
Export waveform images：Yes

Multimeter

DC Voltage：9.999V~999.9V
AC voltage：9.999V~750.0V
DC current：9999uA~9.999A
AC current：9999uA~9.999A
Resistance：999.9Ω~99.99MΩ
Capacitance：9.999nF 99.99mF
Temperature：(-55~1300℃)/(-67~2372℉)
Diode：Yes
Continuity test：Yes
Live line detection：Yes

Function Signal Generator

Channel：Single channel
Frequency：1Hz-2MHz
Amplitude：0.1-3.3V

2C23T
2C23T *1
P6100 Probe *1
Crocodile clip probe *1
Multimeter Probe *1
Charging cable *1
User Manual *1
Packaging box *1

2C23T Option
2C23T *1
P6100 Probe *2
Crocodile clip probe *1
Multimeter Probe *1
Charging cable *1
User Manual *1
Packaging box *1
